These photos are of the Spitfire IX.
 Most of the controls are similar to other Marks of Spitfire

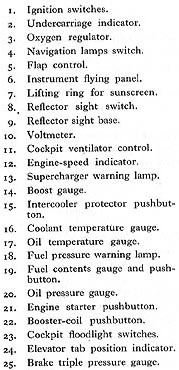

List Spitfire IX Controls

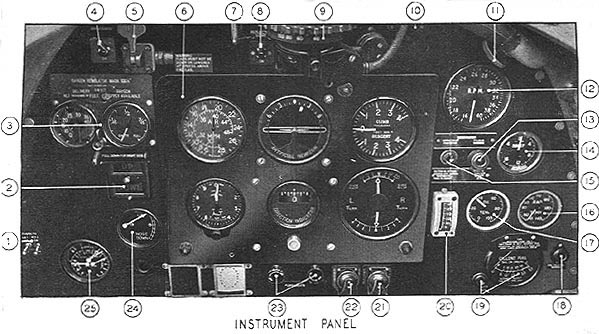

Spitfire IX Controls

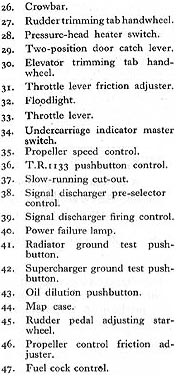

Spitfire IX list of controls 2

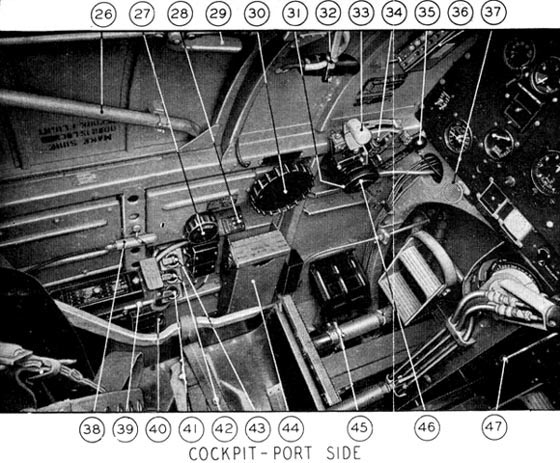

Spitfire IX Contols Port side





List 3 of Spitfire IX Controls

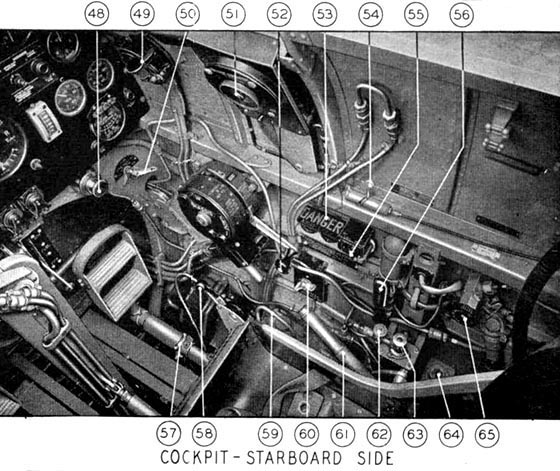

Spitfire IX Controls, starboard side
