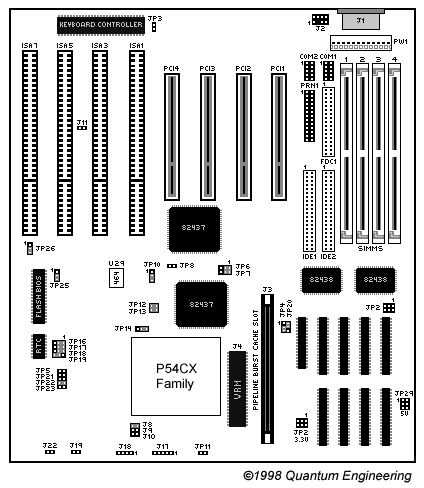

SOYO 82430 FX/P54C PCI Motherboard

Jumper ID	Details
JP 1	SRAM Voltage Type Selection (See JP 29)
JP 2	Reserved
JP 3	Monitor Type Selection
JP 5	CMOS Clear
JP 6	Factory Fixed (1-2)
JP 7	Factory Fixed (1-2)
JP 8	Enable/ Disable System Sleep
JP 9	Reserved
JP 10	AT Bus Clock Select
JP 11	HDD LED Connector

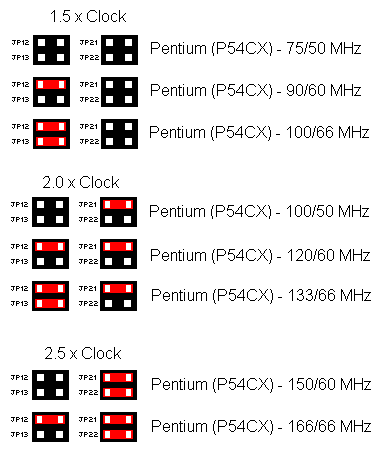

JP 12, JP 13	CPU Configuration
JP 15	Reserved
JP 18	Factory Fixed (1-2)
JP 19	Factory Fixed (2-3)
JP 20	Auto Detect Async/Burst Pipeline Cache

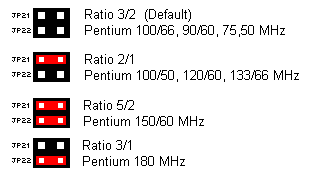

JP 21, JP22	Bus Fraction Core/Bus Ratio Select
JP 23	Pipeline Select
JP 24	Write Back/ Write Through Cache
JP 25, JP 26	EPROM/FLASH Memory Select
JP 29	SRAM Voltage Type Selection
J 1	Keyboard Connector
J 2	PS2 Mouse Connector
J 4	VRM (Voltage Regulator Module) Socket
J 5	Reserved
J 8, J 9, J 10	CPU Voltage Selection
J11	PS/2 Mouse Function
J 17	Keylock & Power Connector
J 18	Speaker Connector
J 19	Hardware Reset Connector
J 22	Turbo LED Connector

Features

· Supports P54CX Family CPUs running at 75/90/100/120/133; 133/150; and 125/150/166/180 Mhz.
· Supports SOCKET 7 & VRM for upgrade.
· Integrated Second Level (L2) Cache Controller.

· Integrated DRAM Controller.

· Shadow RAM in Increments of 16Kbytes.

· Supports Pentium / P54C SMM Mode.

· Supports CPU Stop Clock.

· Supports "Table Free" DRAM Configuration.

· Complient to PCI Specifications (v2.0).

· Four 32-bit PCI Slots (Masters) and Four ISA Slots, 4 layer PCB.

· System BIOS built in NCR810 SCSI Card BIOS and "Plug and Play" function.

· On-board built in PCI Master IDE Controller and Floppy Controller.

· On-board support for two high speed UARTs (w/i 16550 FIFO) and Multimode Parallel port for Standard, Enhanced (EPP) and High Speed (ECP) modes.

· On-board FLASH Memory for easy upgrade of BIOS.

· 5T C2/C5 supports PS/2 mouse function.
